DATOUBOSS 11000W Pure Sine Wave Hybrid Inverter 48 V DC to 230 V AC, which supports battery-free operation, supports parallel
Specifications: User Manual
| Brand | DATOUBOSS |
| Model | DT4811B-11000W-48V |
| INPUT | |
| Input Sources | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range |
90-280VAC±3V(APL Mode) 170-280VAC±3V(UPS Mode) |
| Freqency | 50Hz/60Hz(Auto Adaptive) |
| OUTPUT | |
| Rated Capacity | 11000W |
| Output Voltage | 220/230/240VAC+5% |
| Output Frequency | 50/60Hz+0.1% |
| Waveform | Pure Sine Wave |
| Transfer Time (adjustable) |
Computers(UPS Mode)10ms, Appliance(APL Mode )20ms |
| Peak Power | 22000W |
| Over Load Ability | Battery Mode: 21s@105%-150% Load 11s@150%-200% Load 400ms@>200% Load |
| Peak Efficiency (battery Mode) |
>98% |
| BATTERY | |
| Battery Votage | 48VDC |
| Constant Charging Voltage (Adjustable) |
56.4VDC |
| Floate Charging Voltage (Adjustable) |
54VDC |
| PV Chargers | |
| PV Charging Mode |
MPPT Dual MPPT |
| MAX.PV Input Power | 2*5500W |
| MPPT Tracking Range | 90-500VDC |
| Best voltage | 300-400VDC |
| MAX.PV Input Voltage | 500VDC |
| MAX.PV Charging Current | 150A |
| MAX.AC Charging Current | 150A |
| DISPLAY | |

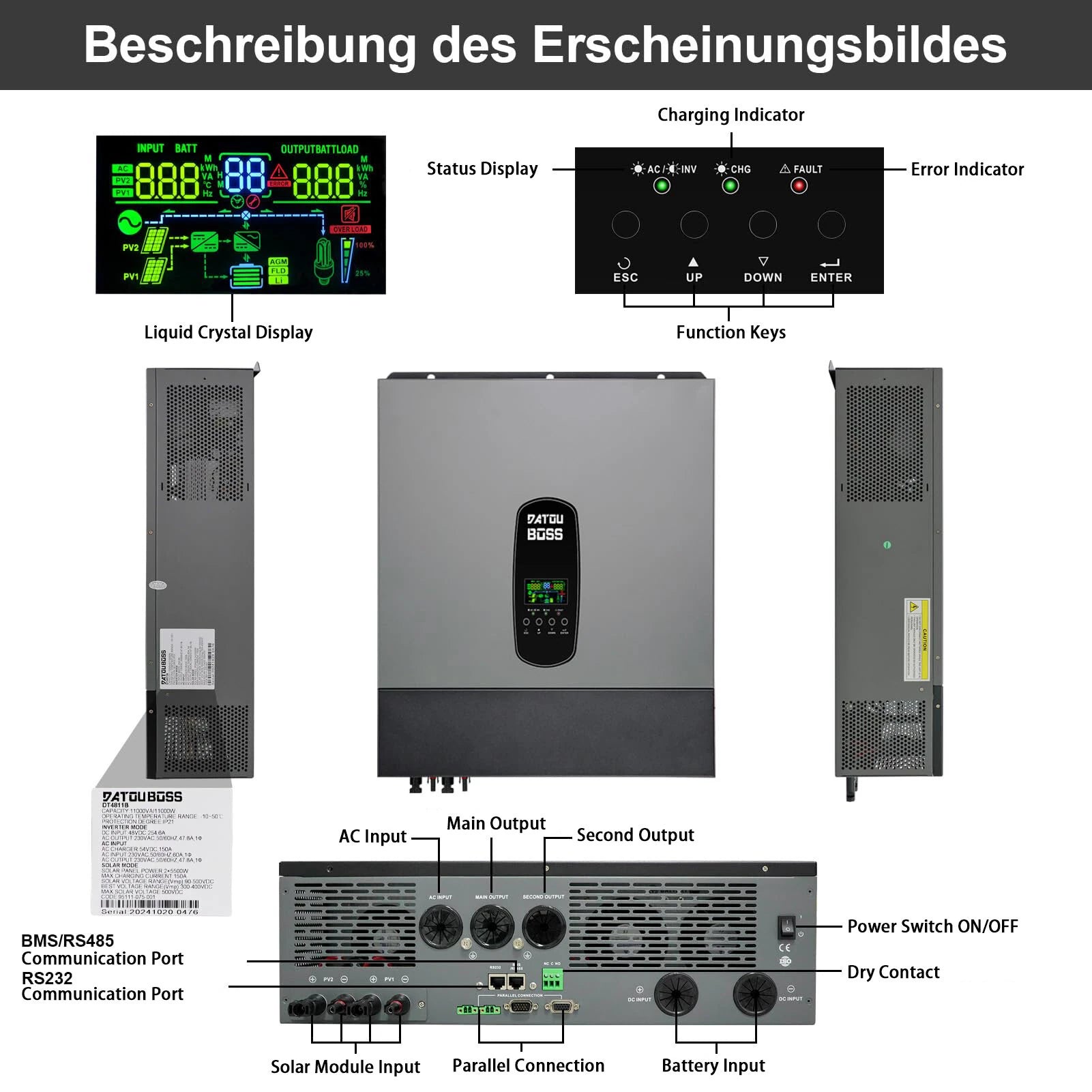

| LCD Display | Display Running Mode/Loads/input/Output etc. |
| INTERFACE | |
| RS232 | Baud Rate2400 |
| Communication Port | Lithium Battery BMS Communication Card WifiCard, Dry Contact |
| Parallel Connect Interface | With Parallel (Up to 9 Units in Parallel) |
| ENVIRONMENTS | |
| OperatingTemperature | -10~50℃ |
| Humidity | 20%~95%(Non-condensing) |
| Storage Temperature | -15-60℃ |
| Altitude | Altiude Not Over 1000m,Derating over 1000m, Max 4000m, Refer to lEC62040 |
| Noise | ≤50db |
Features:
1.[11KW Hybrid Inverter 48V Pure Sine Wave]:11KW hybrid inverter 48V, rated power: 11000W. Rated input voltage: 220/230/240V AC. Maximum open circuit voltage of the PV array: 500V DC. Maximum charging current (PV): 150A. Maximum grid charging current: 120A. Maximum charging current: 160A. MPPT voltage range of the PV array: 90~500V DC. Maximum conversion efficiency up to 98%.

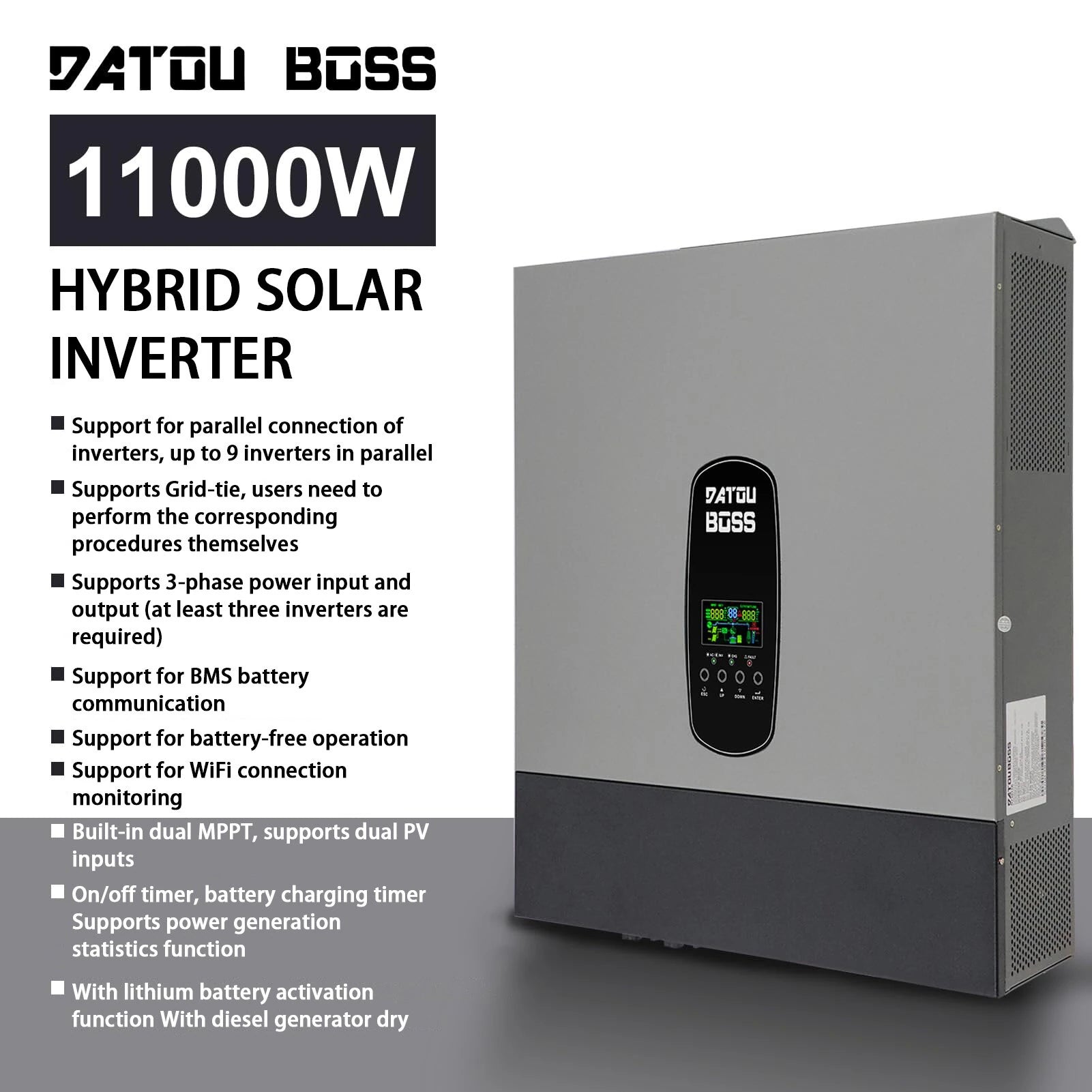

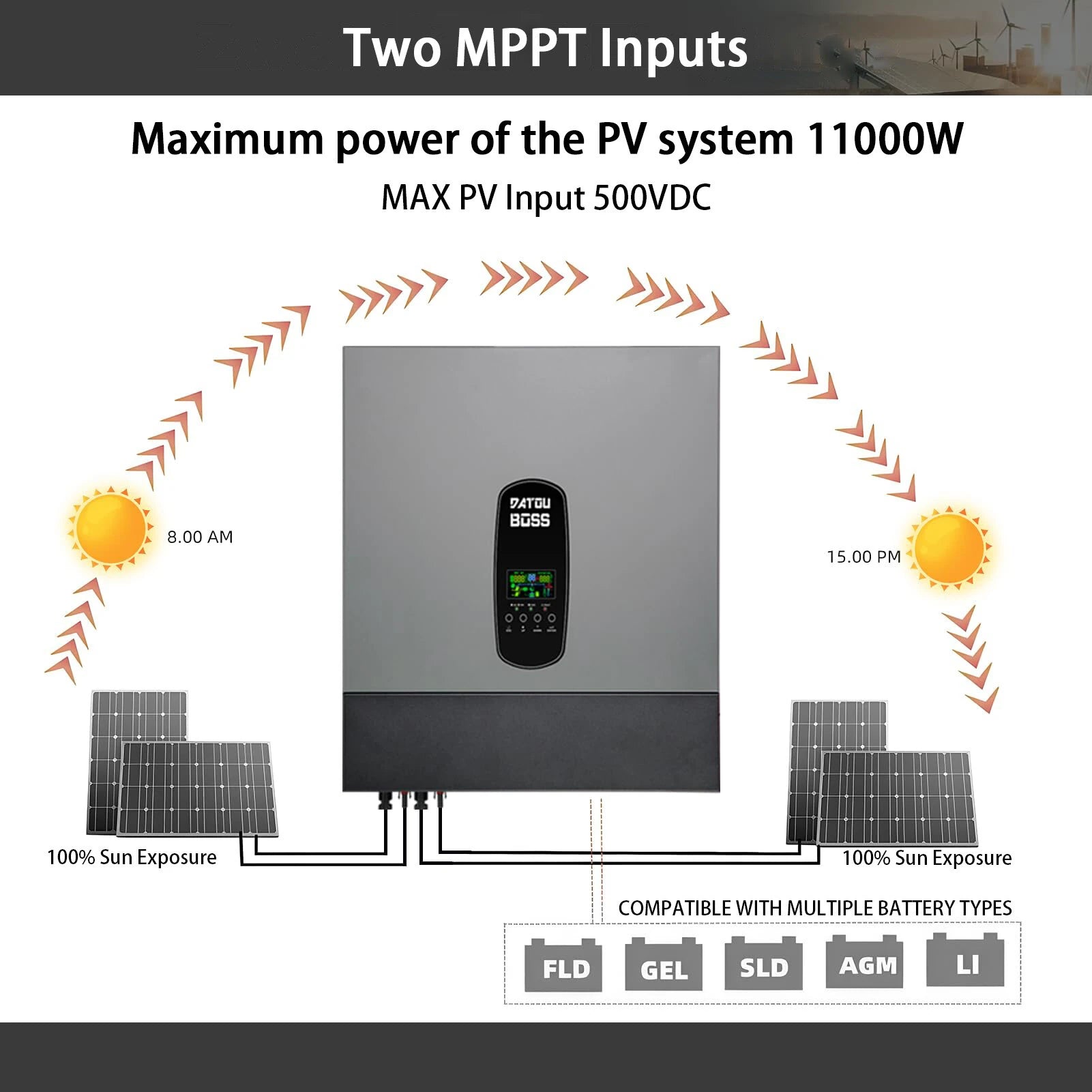

2.[Supports parallel operation and battery-free operation]: The inverters can be connected in parallel, and up to 9 inverters can be connected in parallel. Supports 3-phase electrical input and output (at least three inverters are required). Supports starting work without batteries. The inverter has a built-in dual-channel MPPT and supports two PV inputs. The inverter can be periodically turned on and off to charge the battery.
3.[Off-Grid/Grid-Tied Hybrid Inverter]: This 48V hybrid inverter is not only an off-grid inverter, but also supports the integration of excess power into the utility grid. When power consumption meets load demand, it automatically switches to grid-tied mode, and the excess power is automatically transferred to the utility grid. (Users must take care of the grid-tied procedures themselves.)
4.[4 Charging Modes and 3 Output Modes]: The solar hybrid inverter can configure the battery charging current via the LCD display settings and offers 4 charging modes: solar priority, solar only, grid priority, solar hybrid, and grid, as well as 3 output modes: solar priority (SUB), grid priority (USB), and battery priority (SBU), which can meet different application requirements.

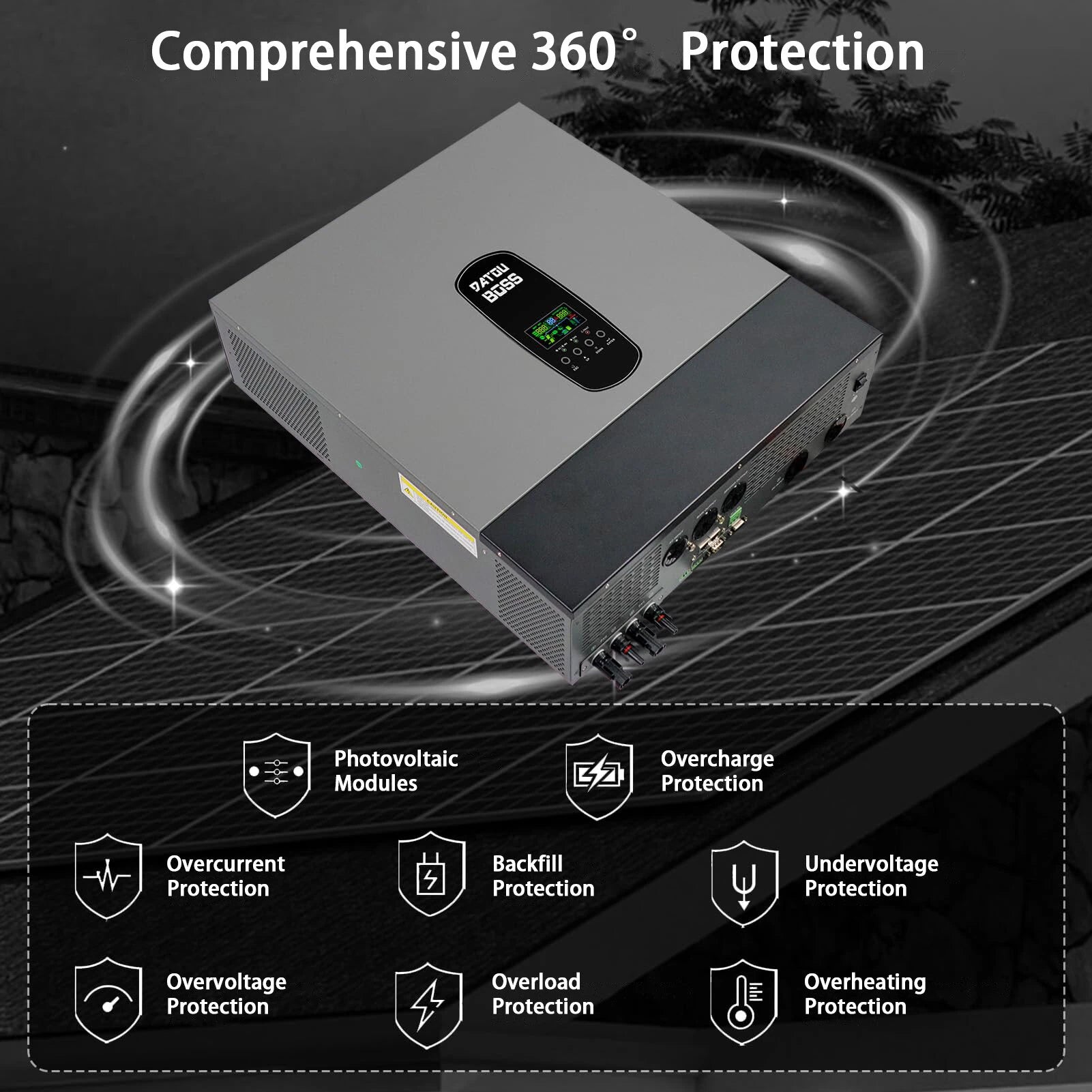

5.[Multiple Protection]: Provides multiple protection methods: short-circuit protection, over-current protection, over-voltage protection, low-voltage protection, overload protection, backfill protection, over-temperature protection, and over-load protection. Comprehensive protection for safer and more secure charging.
6.[Compatible with a variety of home and office equipment]: The maximum rated power of this inverter is up to 11KW, which can provide power for various electrical devices in home or office environments, including electrical appliances such as lamps, fans, refrigerators, air conditioners, coffee makers, etc.
Note:Users who require grid connection functionality, please note: This device supports connection to the electrical grid but does not come with a grid-tie certificate.

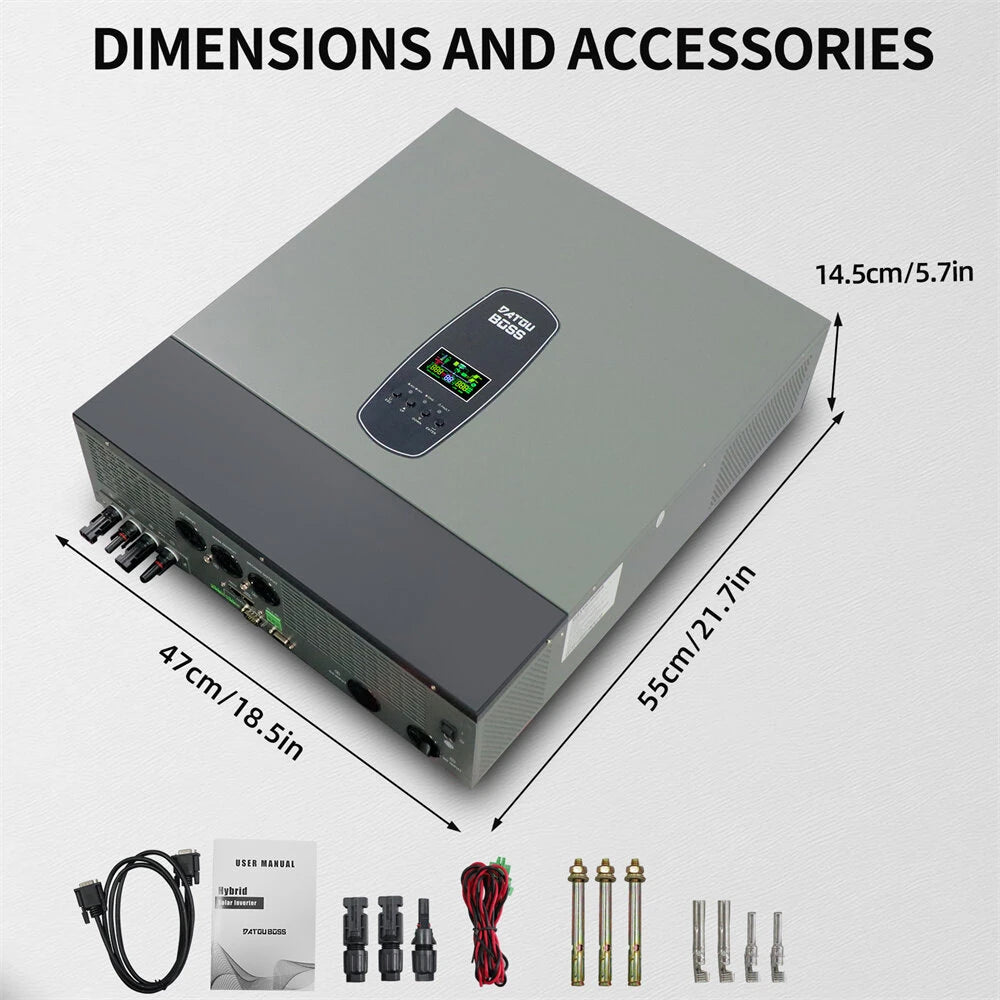

Package includes:
1 x Hybrid Inverter
1 x User Manual
1 x Charging Cable
